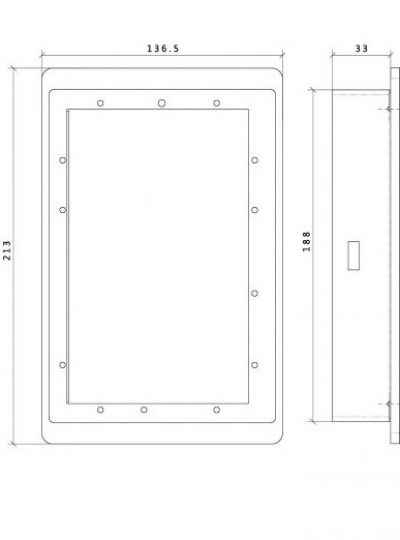

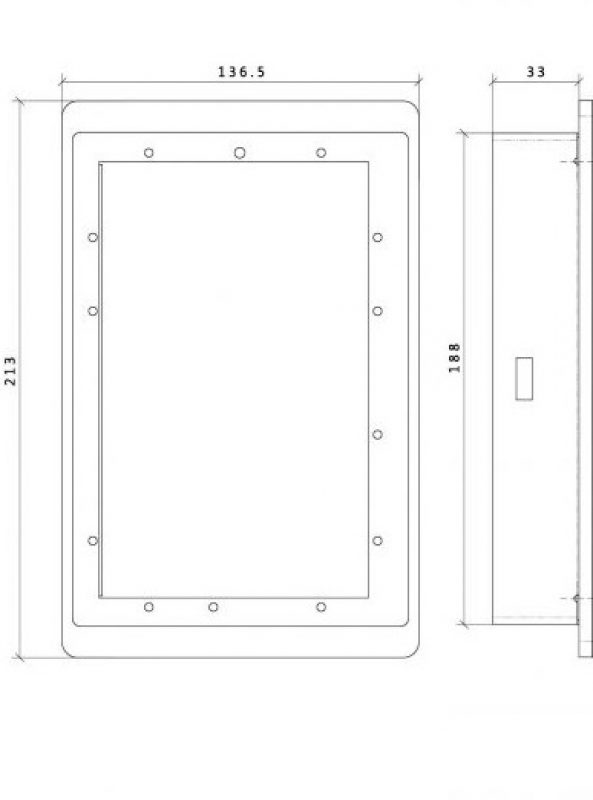

The controller is made of stainless steel faceplate, adapted for external mounting with four fastening screws or for mounting from the rear on displacement handles.

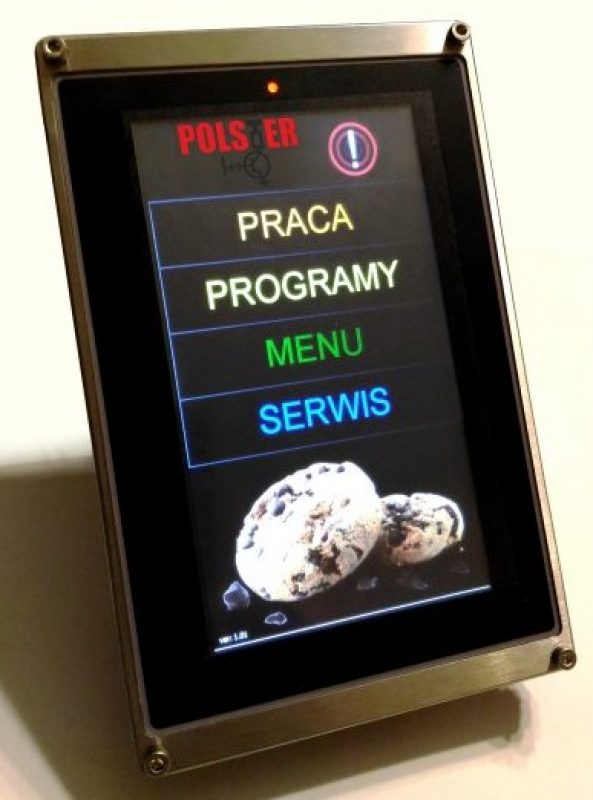

It is a controller integrated with a seven-inch touch screen.
Technical specifications:
- 8 relay outputs
- 1 transistor OUT - pulse to control the speed of the inverter
- 6 WE digital separated, including 1 WE fast meter
- I / O status indication
- 1 temperature measurement - K type thermocouple
- built-in 24 V DC power supply with protection
- 7 "display with resistive TP
- recipe identification using pictograms
We invite machinery and equipment manufacturers to cooperate with us.
Contact mobile 513 032 231 lub wyślij wiadomość
