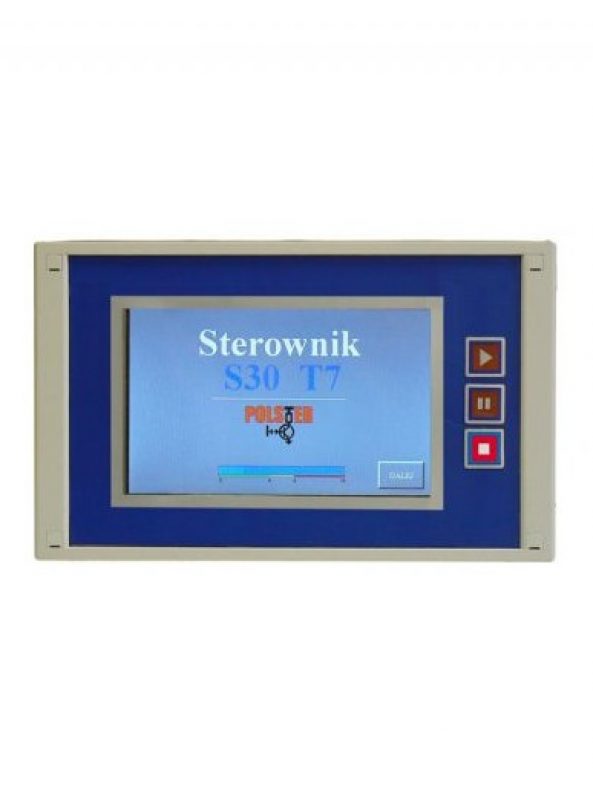

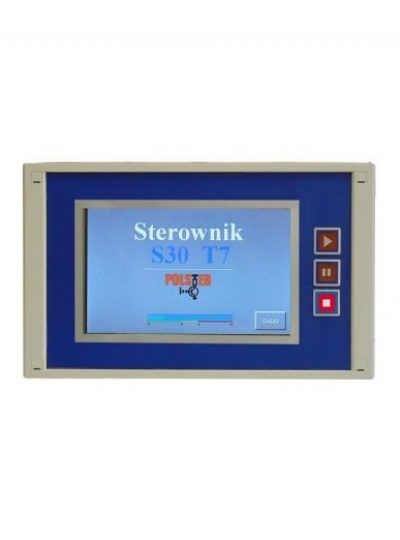

Ball mill controller

Home>Offer>Group by purpose>Ball mill controller>Ball mill controller

Technical parameters of the ball mill controller:

- 8 separated digital inputs powered by a built-in 24 V DC power supply

- 8 outputs

relay

- 3 DC (transistor) outputs

- 1 4-20mA current output (frequency inverter setpoint)

-1 analogue 4-20mA input for measuring water temperature

- 1 PT100 chocolate temperature measuring input (3-wire)

- mini USB interface for connecting a PC - console / software change program

- alarm handling

- built-in function to continue operation after a power outage

- power supply: 24 V DC

- built-in mini USB interface for charging the software
- ethernet (Modbus TCP / IP slave option)
- built-in flash memory for data buffering
- SD card support
- 8 digital inputs
- 8 relay outputs
- 3 transistor outputs
- 1 PT100 input (3 wire sensor)
- 1 analogue input 4-20 mA
- 1 analog output 4-20 mA (loop supply)

We invite machinery and equipment manufacturers to cooperate with us.

Contact mobile 513 032 231 lub wyślij wiadomość
